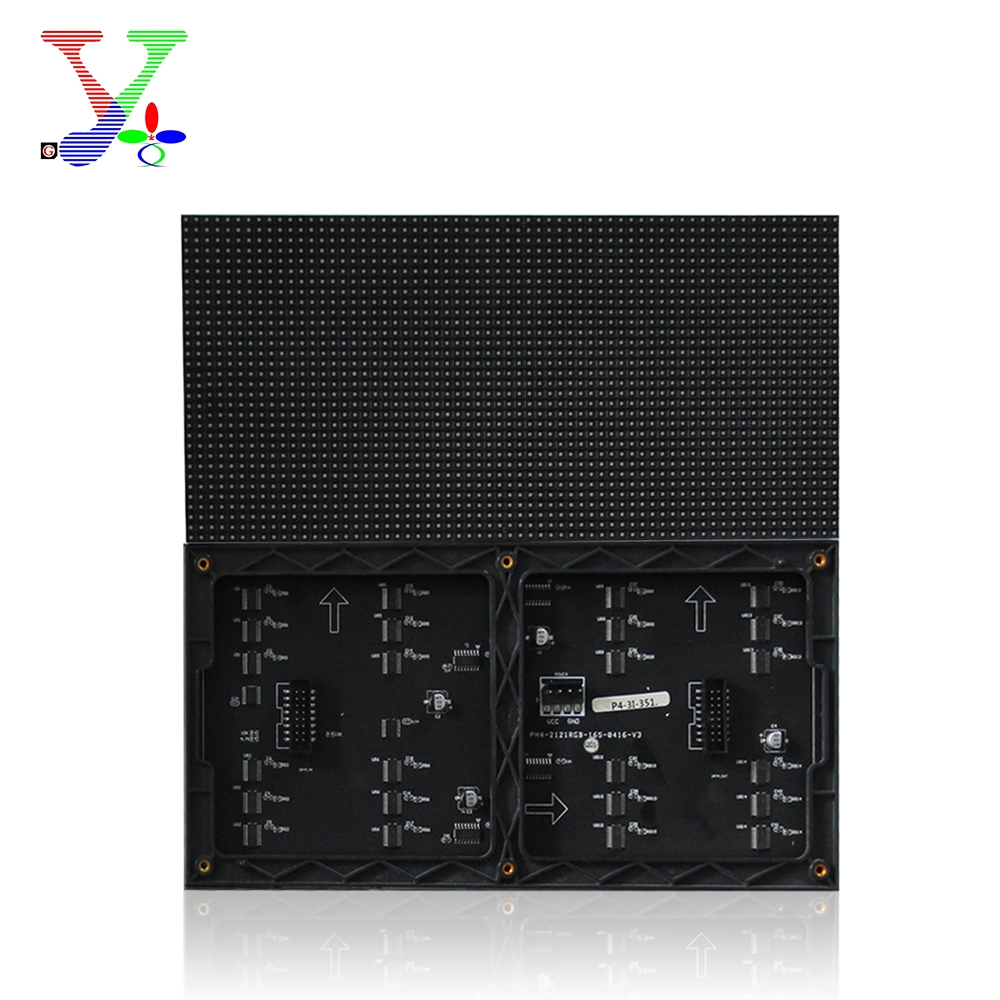

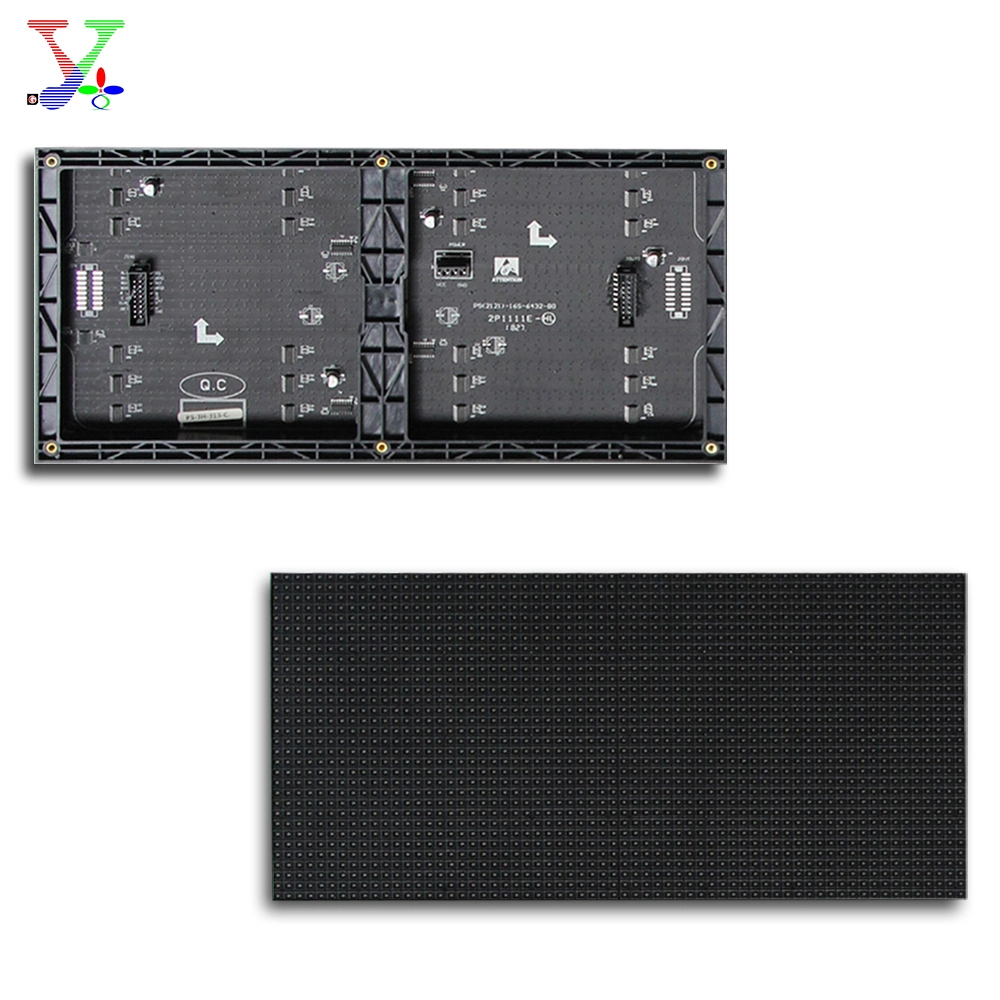

Indoor P4 128*256mm HD LED screen module commercial advertisement

Product DescriptionIndoor P4 128*256mm hd led screen module commercial advertisement  Module parametersTechnical parametersUnitParameters valuesPixel pitchMM4Panel sizeMML256*H128*T14Physical densitydot/M262500Pixel configurationR/G/B1,1,1Driving method 1/16scanLED EncapsulationSMD2121Display resolutionDOTS64X32=2

Featured Products

Product Description
Indoor P4 128*256mm hd led screen module commercial advertisement
Indoor P4 128*256mm HD LED Screen Module Commercial Advertisement


Module parameters
Technical parametersUnitParameters values
Pixel pitchMM4
Panel sizeMML256*H128*T14
Physical densitydot/M262500
Pixel configuration

R/G/B

1,1,1
Driving method



1/16scan
LED EncapsulationSMD2121
Display resolutionDOTS64X32=2048
Module weightKG0.18
Module port HUB75
Module working voltageVDC5
Module consumptionW≤16
Every square metre modulePCS30
Maximum powerW/ M2<500
Equilibrium brightnessCD/ M2≥900
Working environment temperature0C-10~60
Working environment humidityRH10%~70%
Display working voltageVACAC46~54HZ,220V±15%/110V±15%
Best viewing distance ≥4M
Lamp failure frequency <0.0001
IP rating The back IP40,The front IP50
Control method Synchronize or asynchronization control
