P16 Advertising outdoor Full Color LED Display Screen
1. Full-color LED display is composed of RGB trichromatic LEDs, 36 bit color can be shown, and the real-time, synchronous display all kinds of information, such as 2 d or 3 d animation, video, television and live streaming video content.
2. Screen after use for a long time still can keep perfect quality and white balance and enough brightness.
3. LED optical design, high precision, the RGB tricolor LED the far field of view perfect match, in order to make sure from any Angle can be the perfect reappearance of video picture
4. High quality LED chips, anti static, high wavelength stability;
5. Advanced packaging equipment, guarantee the quality and life expectancy;
6. Has a large Angle, color uniformity, low failure rate and easy maintenance.
7. Standard processing technology to ensure that each row and each column tube at the same level, ensure the stability of the clear picture.
1.Product Specification:
2.Product Details:
3.Functions and Advantages
1. High refresh rate: With NOVA STAR control system, no scanning line when photographed
2. High gray level: 256 RGB each ,display 16.7M colors ,vivid and perfect video effect
3.High resolution: The most apparent features of the new generation of LED display
4.Good color uniformity: With brand Lamp Nationstar and high refresh MBI5124 IC.
5. High Brightness: 6000-8000 cd/m2 ,brightness automatically adjusted
6. High Quality: CE, RoHs, FCC, UL, IP65, ISO9001 passed + 96 Hours serious testing time
7. Long life span: over100,000hours, warranty from 2 to 5 years.
8. You need = We design : Provide Personal- Customized led offer .

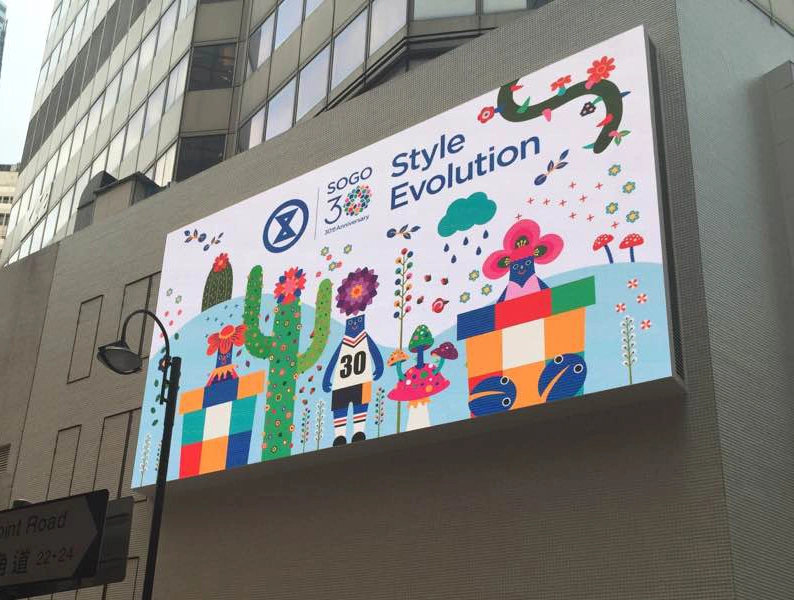

4.Application:
5.Our HONGHUI Factory:
6.Our HONGHUI Team :
7.FAQ :
Welcome to visit honghuiled.en.made-in-china.com for further information!
| Product name | P16 DIP346 outdoor led display | P16 DIP346 outdoor led display |
| Brightness | ≥7000cd/m2 | ≥7000cd/m2 |
| Pixel composition | DIP346 | DIP346 |
| Half-bright angle (horizontal / vertical) | 120°/ 60° | 120°/ 60° |
| Viewing angle (horizontal / vertical) | 160°/ 140° | 160°/ 140° |
| Number of colors | 16bit | 16bit |
| Discrete control point | ≤0.1‰ | ≤0.1‰ |
| Control method | synchronize with the video source | synchronize with the video source |
| Working temperature | -20~50ºC | -20~50ºC |
| Working environment humidity | 10%~90% | 10%~90% |

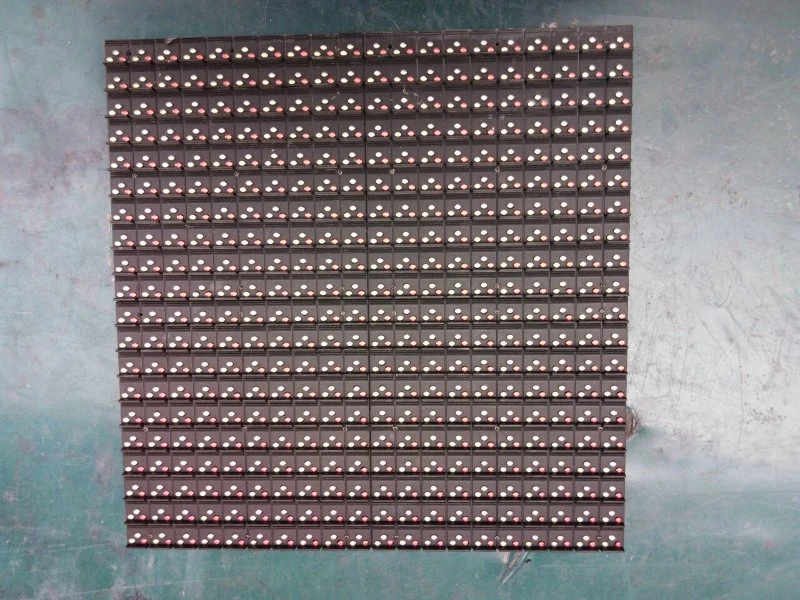

| Cell plate resolution (L * H) | 16*8 | 16*16 |
| Unit plate size | 256mmX128mm | 256mmX256mm |
| Cell plate current | 4.5A | 8A |
| Module weight | 370g | 930g |
| Transfer board | hub40 | hub75 |
1. Full-color LED display is composed of RGB trichromatic LEDs, 36 bit color can be shown, and the real-time, synchronous display all kinds of information, such as 2 d or 3 d animation, video, television and live streaming video content.
2. Screen after use for a long time still can keep perfect quality and white balance and enough brightness.
3. LED optical design, high precision, the RGB tricolor LED the far field of view perfect match, in order to make sure from any Angle can be the perfect reappearance of video picture
4. High quality LED chips, anti static, high wavelength stability;
5. Advanced packaging equipment, guarantee the quality and life expectancy;
6. Has a large Angle, color uniformity, low failure rate and easy maintenance.
7. Standard processing technology to ensure that each row and each column tube at the same level, ensure the stability of the clear picture.
1.Product Specification:
| Outdoor Full Color P16 Football LED Display for Digital Billboard | ||
| 1 | HD small pixel LED display | P1.5625 / P1.667/ P1.923/ P2 |
| 2 | Hot rental LED display | P3 /P3.91 /P4 /P4.81 /P5.95 |
| 3 | Outdoor fixed LED display | P4/P5 /P6 /P8 /P10 /P16 /P20 |
| 4 | LED Control System | Nova Star / LINSN /Colorlight /Listen |
| 5 | LED chip | Epistar from Taiwan |
| 6 | IC | MBI5124/5153 IC |
| 7 | Power supply | Meanwell / G-energy |
| 8 | Cabinet kind | Iron /Aluminum /Die-casting /Fiber Aluminum |
| 1 | Pixel Pitch | 16 mm |
| 2 | Cabinet Size | 1024*1024mm / 768*768 mm |
| 3 | Pixel density | 3906 dots/m2 |
| 4 | Color temperature | 6000K--8000K |
| 5 | Viewing angle | H:140;V:140 |
| 6 | Dead LED lamp rate | ≤0.1‰ |
| 7 | Non-Flatness | <0.2mm |
| 8 | Module interval | <0.2mm |
| 9 | Packaging Gross Weight(KG) | 50 kg (Estimated data) |
| 10 | Packaging dimension | 1m*1m*1.2 m (6cabinet in one case) |
| 11 | Maximal power/m2 | 1000 W/m2 |
| 12 | Brightness adjusted | 256 grade by auto-optic/color &8 grade by hand |
| 13 | Input signal | RF,S-video,RGB,RGBHV,YUV,YC&Composition,etc |
| 14 | Life-span | ≥1 00,000 hours |
| 15 | MTBF | 5,000 hours |
| 16 | Frame frequency | 25 - 60 Hz / s |
| 17 | Refresh rate | ≥2,000 Hz / s |
| 18 | Signal Input(with video processor) | HDMI, DVI, VGA, RF, S-Video, RGB, RGBHV, YUV, YC&Composition, etc. |
| 19 | Control Distance | 120 m (no repeating); Optical fiber transmission: 0.5km- 10km |
| 20 | Systems Operating Platform | Windows XP, Win 7, Win8, Win8.1, Win10 |
2.Product Details:
3.Functions and Advantages
1. High refresh rate: With NOVA STAR control system, no scanning line when photographed
2. High gray level: 256 RGB each ,display 16.7M colors ,vivid and perfect video effect
3.High resolution: The most apparent features of the new generation of LED display
4.Good color uniformity: With brand Lamp Nationstar and high refresh MBI5124 IC.
5. High Brightness: 6000-8000 cd/m2 ,brightness automatically adjusted
6. High Quality: CE, RoHs, FCC, UL, IP65, ISO9001 passed + 96 Hours serious testing time
7. Long life span: over100,000hours, warranty from 2 to 5 years.
8. You need = We design : Provide Personal- Customized led offer .
4.Application:
5.Our HONGHUI Factory:
| A | 96 Hours Serious Testing Time |
| B | 72 Hours Display Testing Time |
| C | 24 Hours Module Testing Time |
| D | 24 Hours After-sales online Service |
| E | 12 Hours LED Inquiry Response Time |
| F | 8 years Professional LED display factory |
| G | 5 years Excellent Domestic Big Government LED Designer |
| H | 3 years Expanding International Trade Experience |
6.Our HONGHUI Team :
| 1).Leader Team | CEO with 8 years led display industry experience, keen market observation ability |
| 2).Engineer Team | +Chief Engineer Director with 8 years professional technical experience +3 Engineers speaking English fluently fly all the world |
| 3).Production Team | 72 Hours Display Testing Time + 24 Hours Module Testing Time + Serious QC Process |
| 4).Sales Team | + 5 years Excellent Domestic Big Government LED Designer + 3 years Expanding International Trade Experience . + All Sales Can Respond your Inquiry within 12 hours |
7.FAQ :
| Q1:Are you a factory or just a trade company? A1:Our HONGHUI is a led display factory with R&D department and production line,professional engineering team and energetic sales team.Warmly welcome to visit our HONGHUI factory and have face-to-face business talk to better understand each other .Or when you are free ,we can have SKYPE VIDEO TALKING ,and show our HONGHUI factory. Q2:Can you tell me why I should choose your company ? A2:Concentration makes professional .Professional achieves successful . Our HONGHUI have 8 years professional led technical experience .We are 5 years gold supplier for China government led project .Now ,we are largely expanding our international market.From 2009 to 2017, we only do LED .Now and In the future, we still do LED.We can cooperate from trail order to establish trust step by step . Q3: What's the warranty of your LED Display ? A3: 2-5 years warranty .and 96360hours life span.During the warranty period ,we can offer you related after-sales service. Our professional engineering team are ready for your question during 6:00-23:30. Q4: What's your payment term? How long is your delivery time ? A4: We accept T/T ,ALIBABA Trade Assurance ,Paypal ,Western Union ,Money Gram, and Cash .At least 30-50 % deposit in advance, and the balance should be paid before delivery.Our average Production time is 7-15 working days after receiving the deposit.If your order is rapidly urgent ,we can arrange your order firstly. Q5:How can I get technical support? Q5: We treasure every customer that shake hands with our HONGHUI . We offer you TEAMVIEWER help by Online Video and can send professional engineer to your city to offer on-site guide . Q6: What about your service? A6: We have a professional 8 years technical team answering your question during 6:00-23:30. We have an energetic and patient sales team .We can offer a complete LED design solution for your LED project before confirming the order . We can instruct you how to use, configure your led display , and do some maintenance with spare parts. Also, we can send professional engineer to your city to offer on-site guide and offer training.Mostly,our led display do not have big problems within warranty time. Q7: Is Available to print customer required logo on your led product ? A7: Surely it is .Please inform and confirm the logo design details with our team ahead of the production . Then ,we will follow your requirements . If you want to know more , you can freely contact Our HONGHUI Team . -:) |
