Outdoor RGB LED P3.91 Full Color HD LED Display Panel

R SERIES FEATURES:


. IP65 design: good for any outdoor event environment.

. Auto-calibration: avoid complicated calibration work, no need debugging after changing led modules.

. Easy and quick assembly: fast assembly and dismantle design to save labor force and time.

. Seamless assembly: stainless steel locks achieve micro-adjustment to make seamless screens.

. Cabinet anti-damage design : special protection design at the cabinet bottom to keep bottom line leds from broking.



PRODUCT SPECIFICATIONS:
NO.ParameterSpecification
1ModelR 3.91-SMD1921 outdoor rental screen
2Pixel Pitch(mm)3.91
3LEDSMD1921
4Screen Resolution65536dots/sqm
5Scan Method1/16
6Module size(mm)250*250
7Cabinet size(L*H*W mm)500x500x88
8Cabinet(Kg)7.8KG
9Viewing angleH:140°/ V:140°
10Grey Scale14bit
11Refresh rate(HZ)≥1920
12Brightness(nits)≥4500
13Working Voltage(V)AC 100~240V
14AVE. power consumption (W/sqm)230
15MAX. power consumption(W/sqm)560
16IP gradeF:IP65 / R:IP54
17ControllerNovastar
18MaintenanceRear service
19Working humidity10~95%RH
20Storage humidity10~95%RH
21Working temperature-30ºC~60ºC
22Storage temperature-40ºC~70ºC



Reference photos:

LED panel photos:

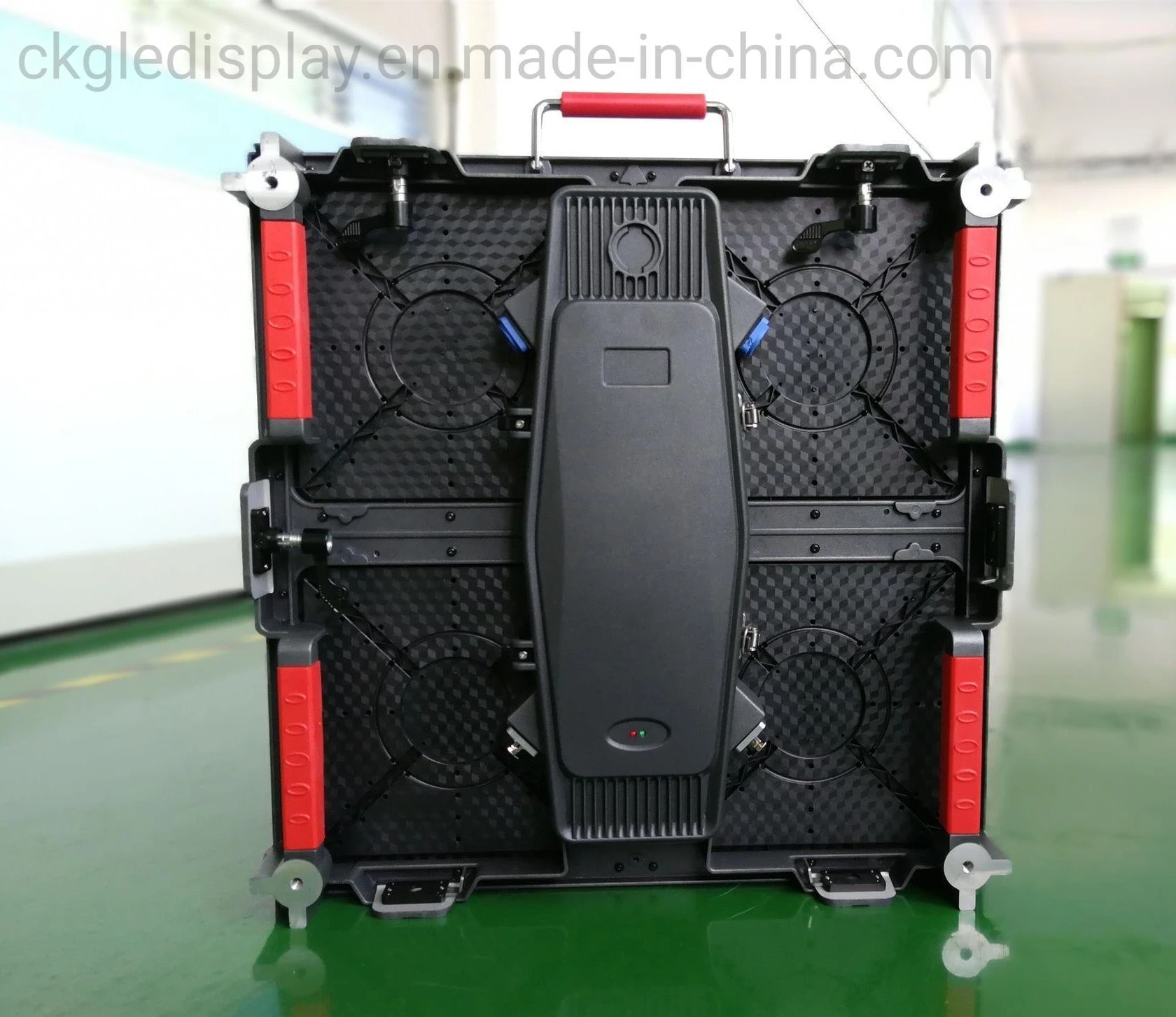

Rear:

Outdoor RGB LED P3.91 Full Color HD LED Display Panel

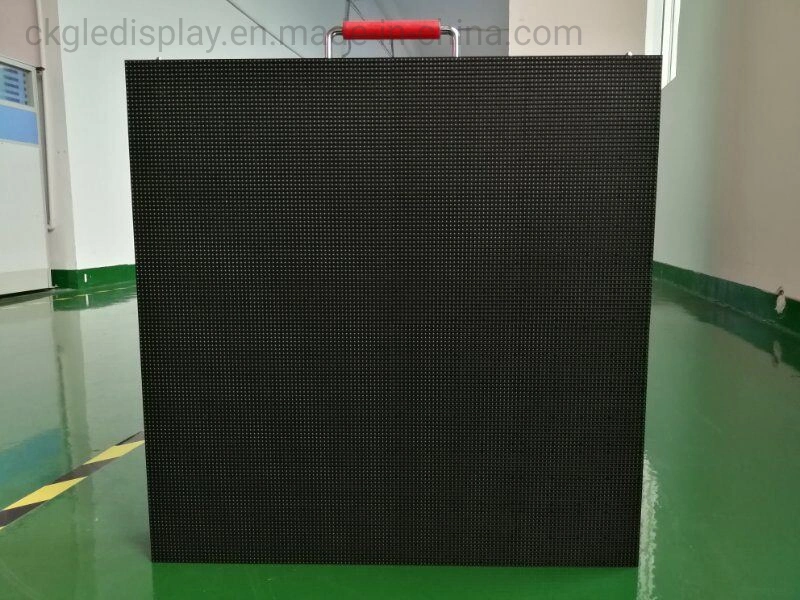

Front:

Outdoor RGB LED P3.91 Full Color HD LED Display Panel

Testing photos in CKGLED factory room:

Red Color testing:
Outdoor RGB LED P3.91 Full Color HD LED Display Panel



Green Color testing:

Outdoor RGB LED P3.91 Full Color HD LED Display Panel



Application case:

Outdoor RGB LED P3.91 Full Color HD LED Display Panel


Outdoor RGB LED P3.91 Full Color HD LED Display Panel


CERTIFICATE:



Outdoor RGB LED P3.91 Full Color HD LED Display Panel


production process:

Outdoor RGB LED P3.91 Full Color HD LED Display Panel

Package:


Outdoor RGB LED P3.91 Full Color HD LED Display Panel


Packing>>>
For iron cabinet LED display screen of indoor or outdoor, we usually use wooden case to packing
For aluminum cabinet of LED rental stage display, we usuallu use flight case to packing
One wooden case including 2 cabinets, one flight case including 6 cabinets
Shippment>>>
By air or sea, FOB shenzhen
UPS/DHL/FedEx/Express(door to door)and so on
Delivery time>>>
Within 15 days counting from 30% prepayment arrived at CKGLED account.
Payment term>>>
T/T(30% deposit, the remained 70% payment made before factory shipment )
Quality assurance>>>
We offer 2 years warranty, and our products have passd CE, RoHS, FCC certificate, All products have Age testing, shaking testing, waterproof testing, In generally, Module test is 24h, entire screen test is 72h, A series of testing before delivery can ensure transportation and quality products.




Pre-Sales  Service
--Provide details about the production procedure
--Assign engineers for installation and testing

Sales  Service
--Customized solution designs
--Product rendering and steel structure drawing
--CKGLED's successful project examples and visits to our production and base


After-Sales  Service
--Two-year quality warranty with lifelong maintenance.
--Free guarantee repair (including labor and material):  free repair service during the quality warranty period and reasonable charge for spare parts and maintaining service after the quality warranty period. We will never exempt our responsibilities on product owned defects.
--Responding time: upon receiving user's notification, we ensure 24-hour after-sales technical support.
--Spare parts: necessary spare parts are provided together with products to customers.
--Free technical training: integrative and normative technology training is available for free to customers by our technical personnel to ensure they are skilled in regular operations of hardware and software of products and they are able to estimate and solve small problems.
--Telephone investigation: our after-sales team will phone the user every month during the warranty period to follow up the working condition of the products, and to discover and solve problems, if necessary.
--Software upgrade: lifelong maintenance of controlling system, incessant improvement of the system functions and continuous software upgrades.
