Features
Parameter
Note
All parameters are measured at normal temperture(25-28 ºC )
1. Ripple & Noise are measured at 20KHz of bandwidth by using a 12" twisted pair-wire teminated with
a 0.1 uf & 47uf parallel capacitor(@ full load).
2. The efficiency measured at Max output voltage,and 230VAC with full load,if with 110VAC the efficiency
will be lowered 0.5%~1.5%;Working 1~2 hours,efficiency will be higher 1.5%~1%than the initial stage.
Wiring diagram
Applications
a. Skilled workers and experienced QC for quality control.
b. Competitive price,superior quality & faster serivce.
c. Can be customized according to customers demand.
d. For your inquiry, we're to reply in detail within 24hours.
e. 2-5 years warranty time.
f. Lead time: 5-7 workdays for sample order,12-15 workdays for official order
g. We're dedicated to supply most suitable product, provide best sales& after-sale services to you.
FAQ
Q1. Are you a manufacturer?
A: Yes, we are the manufacturer. You are warmly welcome to visit our factory in Shenzhen, China.
Q2. Do you have any MOQ limit for led driver & light & accessories order?
A: The MOQ is 2pcs for sample checking is available. We welcome sample order to test and check quality.
For formal order, the MOQ is 100pcs/item/size.
Q3. Is it OK to print my logo on led driver & light product and use my own package and trade mark?
A: Yes. Normally we offer white inner box and carton box. Use your own design is ok. Please inform us
formally before our production and confirm the design firstly based on our sample.
Q4: Does your company accept OEM?
A: Yes, welcome OEM!
| The output mode | Constant Current; |
| Design | Noise free & Flicker free ; |
| Technology | Using active built-in PFC technology; |
| Efficiency | >90%@ Full Load; |
| Power factor | >0.95@230V ; |
| Protection | Short Circuit Protection / Over Voltage Protection; |
| Waterproof Protection | Aluminum silicone gel potted waterproof IP67 protection; |
| Dimming mode | 0/1-10V/PWM/potentiometer(3 in 1 dimming); |
| Input voltage | Full input voltage 90-265V AC; |
| Certificates | CE/ROHS/ETL/SAA/TUV passed. |
Parameter
| Model | VGD-0/10V-CC-250W |

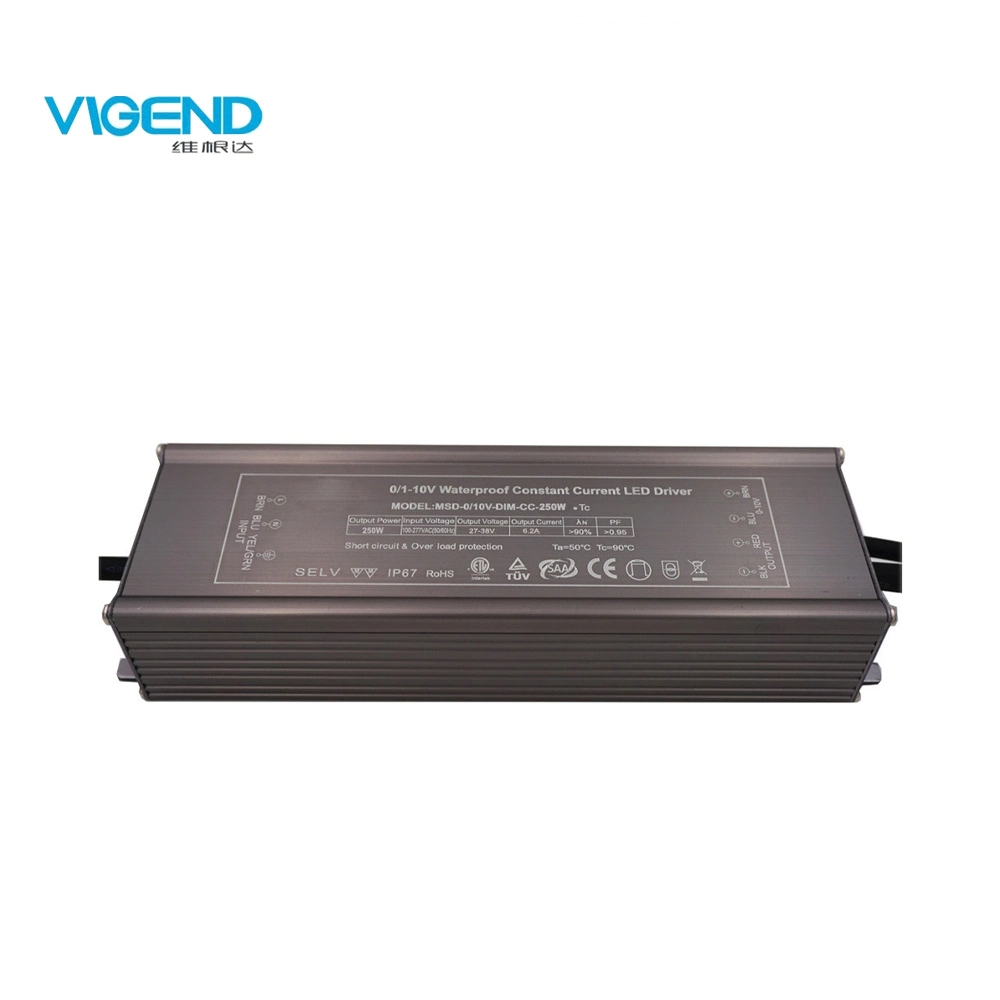

| Product Name | 250W 0-10V Dimmable LED Driver |
| Output Voltage | 20-38V / 45-60V / 65-80V /85-100V |
| Current Precision | ±5% |
| Output Current | 6.2A / 4A / 3A / 2.3A |
| Output Power | 250W(Max) |
| Line Regulation | 1% |
| Input Voltage Range | 100-277V/AC(standard) 85VAC(min)305V/AC(max) |
| AC Current(Typ) | 2.77A@100VAC 2.51A@110VAC 1.25A@220VAC 1.03A@264VAC |
| Frequency Range | 50-60Hz |
| Weight | 1200G |
| Dimension | 260*70*40mm ( L*W*H) |
| PCB | 94V-0 PC fire retardant |
| Color | Dark Grey |
| Packing | 31*17*18cm/15pcs |
Note
All parameters are measured at normal temperture(25-28 ºC )
1. Ripple & Noise are measured at 20KHz of bandwidth by using a 12" twisted pair-wire teminated with
a 0.1 uf & 47uf parallel capacitor(@ full load).
2. The efficiency measured at Max output voltage,and 230VAC with full load,if with 110VAC the efficiency
will be lowered 0.5%~1.5%;Working 1~2 hours,efficiency will be higher 1.5%~1%than the initial stage.
Wiring diagram
Applications
a. Skilled workers and experienced QC for quality control.
b. Competitive price,superior quality & faster serivce.
c. Can be customized according to customers demand.
d. For your inquiry, we're to reply in detail within 24hours.
e. 2-5 years warranty time.
f. Lead time: 5-7 workdays for sample order,12-15 workdays for official order
g. We're dedicated to supply most suitable product, provide best sales& after-sale services to you.
FAQ
Q1. Are you a manufacturer?
A: Yes, we are the manufacturer. You are warmly welcome to visit our factory in Shenzhen, China.
Q2. Do you have any MOQ limit for led driver & light & accessories order?
A: The MOQ is 2pcs for sample checking is available. We welcome sample order to test and check quality.
For formal order, the MOQ is 100pcs/item/size.
Q3. Is it OK to print my logo on led driver & light product and use my own package and trade mark?
A: Yes. Normally we offer white inner box and carton box. Use your own design is ok. Please inform us
formally before our production and confirm the design firstly based on our sample.
Q4: Does your company accept OEM?
A: Yes, welcome OEM!
