0.96-inch 128X64 resolution 15-pin white small OLED display

0.96 inch 128x64 resolution 15 pin white small oled display screenDetailed ImagesProduct Features‐ Small molecular organic light emitting diode. ‐ Color : White‐ Panel matrix : 128x64‐ Driver IC : SSD1315Z‐ Excellent quick response time:10μs- Extremely thin thic

Featured Products

0.96 inch 128x64 resolution 15 pin white small oled display screen

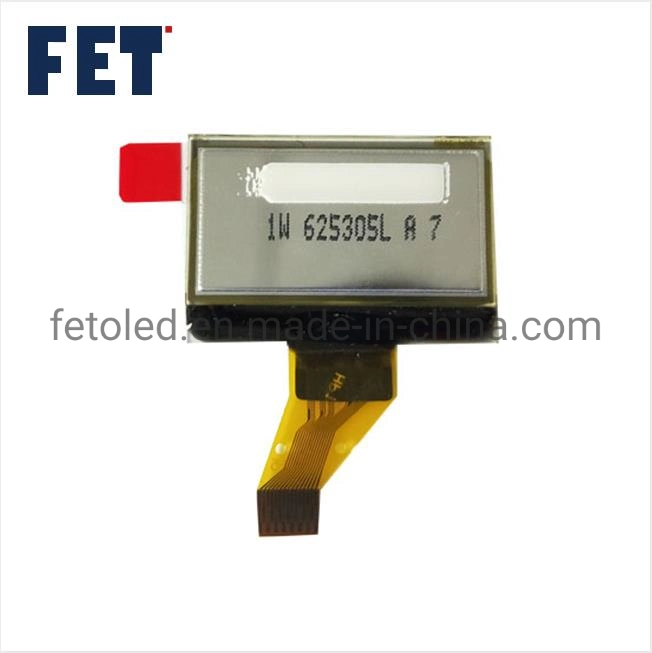

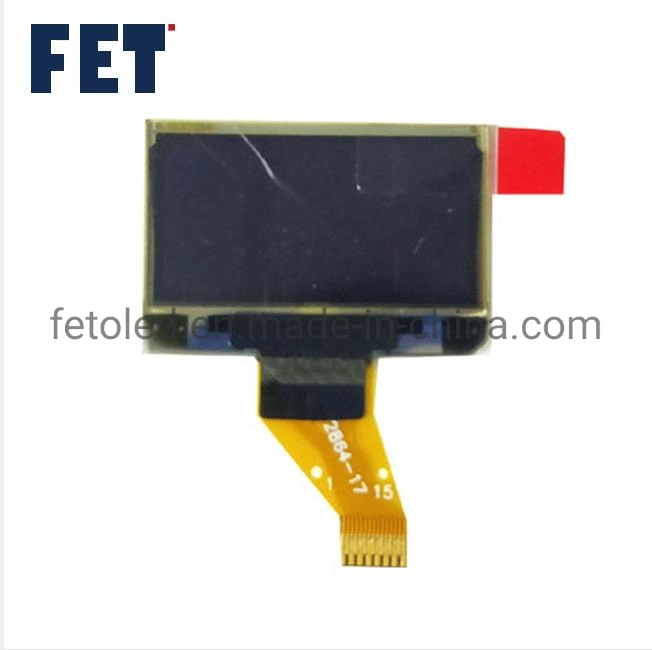

Detailed Images
0.96 Inch 128X64 Resolution 15 Pin White Small OLED Display Screen0.96 Inch 128X64 Resolution 15 Pin White Small OLED Display Screen


Product Features

‐ Small molecular organic light emitting diode.
‐ Color : White
‐ Panel matrix : 128x64
‐ Driver IC : SSD1315Z
‐ Excellent quick response time:10μs
- Extremely thin thickness for best mechanism design: 1.42 mm
‐ High contrast : 2000:1
‐ Wide viewing angle : 160°
- Strong environmental resistance.
- 3/4 wire Serial Peripheral Interface, I²C Interface.
- Anti-glare polarizer.
‐ Wide range of operating temperature : -40 to 70 °C



MECHANICAL DATA

NOITEMSPECIFICATIONUNIT
1Dot Matrix128 (W) x 64 (H)dot
2Dot Size0.15 (W) x 0.15 (H)mm²
3Dot Pitch0.17 (W) x 0.17 (H)mm²
4Aperture Rate78%
5Active Area21.74 (W) x 10.86 (H)mm²
6Panel Size24.74 (W) x 16.9 (H)mm²
7Panel Thickness1.22 ± 0.1mm
8Module Size24.74 (W) x 31.36 (H) x 1.42 (D)mm³
9Diagonal A/A size0.96inch
10Module Weight1.16 ± 10%gram




Drawing
0.96 Inch 128X64 Resolution 15 Pin White Small OLED Display Screen




Other Size

SizeModel NO.   ResolutionInterface
0.84" OLEDP36903128x64SPI
0.96" OLEDP32902128x64SPI
1.3" OLEDP36103160x160SPI
1.5" OLEDP22102128x128SPI
1.54" OLEDP30804128x64SPI
1.77" OLEDP16812160x128SPI
2.23" OLEDP25705128x32SPI
2.7" OLEDp35802128x64I2C/SPI
3.2" OLEDp21302256x648-bit 8080
1.39" AMOLEDE1392AM2400X400MIPI 1-lane
1.41" AMOLEDE1417AK7320x320MIPI
5.5" AMOLEDE549-Hco11080X1920MIPI 4 lanes
7.8'' Flexible AMOLED7.8'' FD1440x1920HDMI
2.9'' E-ink displayOPM080A11024x768INTEL 8080

If you need more dimensions and information, please contact me directly!
