HD Indoor RGB P2.5 LED Display Panel Display Screen Video Wall
Specification:
Light Chip
TypeSMD1515Chip parametersRed λd:(620-625nm) IV:(800-960mcd)
Color1R1G1BChip parametersGreen λd:(520-525nm) IV:(1350-1650mcd)
BrandEpisterChip parametersBlue λd:(470-475nm) IV:(330-400mcd)

LED Module
Pixel Pixel2.5 mmModule Size160 mmWX160 mmH
Module Resolution64×64=4096(Dots)Module Weight0.2kg

LED Display Cabinet
Pixel Density160000 Dots/m2Frame Frequencyno less than 60 frame/sec
Cabinet Resolution192×192=36864(Dots) Input VoltageAC110-220V±10%,50/60Hz
abinet Dimension(W*H*D)480x 480 x 80mmOutput VoltageDC-5V,40A/60A/80A
Module Quanty /Cabinet9 pcs = 3 (w) x 3(h)Grey Scale Levels16bit
Cabinets MaterialDie-casting Alminum CabinetColor ProcessingR(1024)×G(1024)×B(1024)
Cabinet Weight9 kgBrightness Adjustment256 color levels
Brightness≥1000 nitsMTBF( mean time between failures)5000 hours
Viewing AngleHorizontal 140°, Vertical 140°Life-span100,000 hours
Nearest Viewing Distance3 meterProtection Level(front/back)IP45
Power Consumption (Max)800 w/m2Malfunction Dot Rateless than 0.0001
Power Consumption (Average)200 w/m2Working Temperature-30ºC~50ºC
Display FunctionText,Graphics,VideoHumidity15%~85%
Refresh Rate≥2000HzScan Mode1/32

Control System
Control ModeSynchronization/AsynchronizationControl SystemSending Card, Receiving Card,Receiving HUB
PC Operating SystemMicrosoft Windows 7, XP and VistaSoftwareED Studio Nova/Linsin
Communication TypeNet cable,3G,WIFI(Sold separately)Control Card InputDVI,USB,RJ45,HDMI(Sold separately)
LanguageChinese,Traditional Chinese,English,French,Japanese,Russian,
Thai,Spanish,Polish,Italian,Portuguese,Turkish,Dutch,Greek,Bulgarian,
Romanian,Arabic
Product description:

1.High resolution: there are 160,000 pixels per square, and the best viewing effect can be obtained at a visual distance of 2 to 30 meters from the screen.
2. Non-linear correction technology, the image is clearer and the layering is stronger.
3. High performance: The flatness coefficient of the module and the module is <0.5mm, and the power factor is over 88%;

HD Indoor RGB P2.5 LED Display Panel Display Screen Video Wall

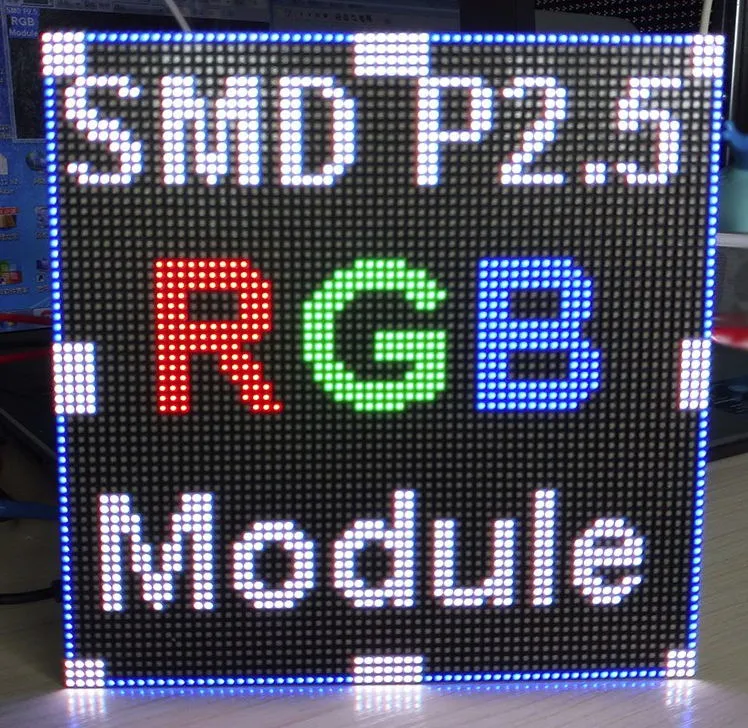

Module:
HD Indoor RGB P2.5 LED Display Panel Display Screen Video Wall

4. Super detection function: real-time detection of whether the pixels in the screen are invalid, and the working status of remotely transmitting pixels;
5. Low fever: The air conditioner can be used without refrigeration.
6. Durability: The light-emitting module is guaranteed for ten years, the mask is not reflective, UV-resistant, and does not fade for five years;

HD Indoor RGB P2.5 LED Display Panel Display Screen Video Wall
HD Indoor RGB P2.5 LED Display Panel Display Screen Video Wall
HD Indoor RGB P2.5 LED Display Panel Display Screen Video Wall


7. Dual backup running system to ensure the display screen works normally;
8. The remote networked intelligent control system can realize remote synchronization or time-sharing control of several cities' display screens.

Widely used in museums, planetariums, science and technology museums, children's palaces, exhibition halls, gymnasiums, waiting halls, star hotels, large open spaces, railway stations, ports, shopping malls, bars and other places.

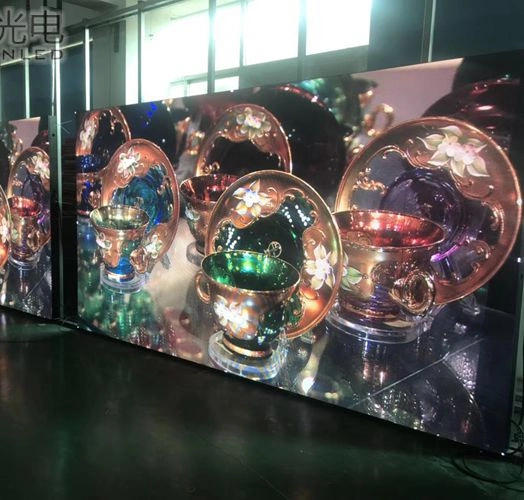

Application:

HD Indoor RGB P2.5 LED Display Panel Display Screen Video Wall


Company information:

JINGCAN led factory's main products areconsist of rental led display, advertising led screen,
football stadiumperimeter, stage background video wall, traffic guiding display, special-shaped display like curve and round, led moving light, led Par light, led modules andlaser light, etc.

The outstanding features of our led products areenvironmental-friendly, energy-saving and long life-span. All of our LEDproducts have approved by CCC, CE, ROHS, FCC, ISO9001 quality certificates authorities. Furthermore, our LED products were exported to more than 90countries
till now such as Sweden, USA, Brazil, France, Japan, Thailand, Italy,Australia, Spain and etc. Those LED products were widely used in both indoorand outdoor places like hall, hotel, exhibition room, public square, symbols,building and TV stage background and etc.
HD Indoor RGB P2.5 LED Display Panel Display Screen Video Wall
JINGCAN LED FACTORY Main LED Display Product Lines - Automatical Machines
HD Indoor RGB P2.5 LED Display Panel Display Screen Video Wall


Qualification Honor:
HD Indoor RGB P2.5 LED Display Panel Display Screen Video Wall

Product Project:
HD Indoor RGB P2.5 LED Display Panel Display Screen Video Wall

Packing and Shipping:

Packing: Anti-shaking wooden cabinet/Air flight case/strong carton

Shipping port: Shenzhen, China

Shipping way:Air;Express;Ocean;Land Transportation

Delivery time: 7-15 working days after confirm receipt  payment in advance.

Long working life: In the Maintenance period, free of all maintenance charge.After maintenance period only charge the material costs fees.


HD Indoor RGB P2.5 LED Display Panel Display Screen Video Wall


HD Indoor RGB P2.5 LED Display Panel Display Screen Video Wall

FAQ:
Q1. Can I have a sample order for led Screen?

A: Yes, we welcome sample order to test and check quality. Both for LED moduel or
a whole screen.

Q2. What about the lead time?

A:About 7~10 working days.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1 square meter or a moudle checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We mostly accectp FOB train term, but we can help you order and arrange shipping agent.
It usually take 20 30 day on sea. a few days for customer clearance

Q5. How to proceed an order for led Screen?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document  and places deposit for formal order.
Fourthly We arrange the production.

Q6: Do you offer guarantee for the products?

A: Yes, we offer 2 years warranty to our products.

Q7: How to deal with the faulty?

A: Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
