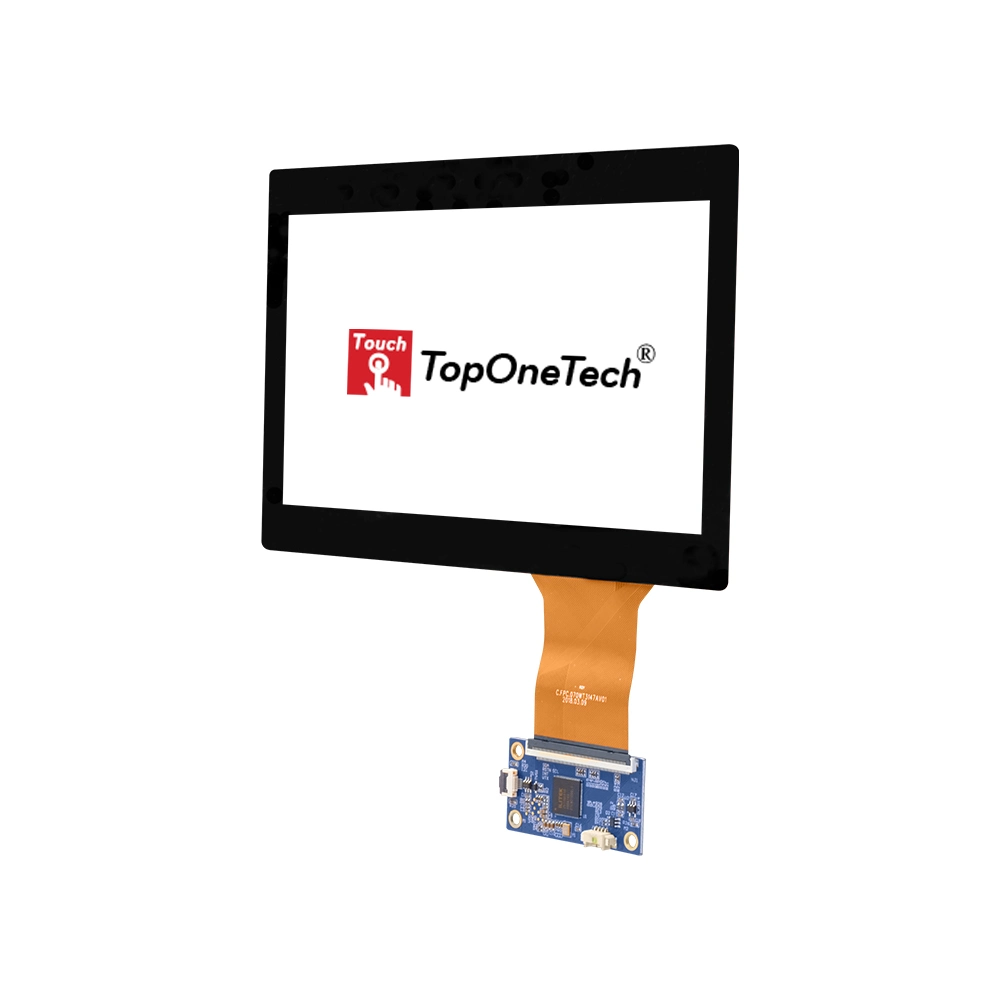

Toponetech's 7 inch projected capacitive (PCAP) touchscreens through various touch panel structures including anti sacratched glass layers.
Due to its highly durable and smooth surface,projected capacitive touch screen is suitable for industrial touchscreen display applications,Gaming,
Transprotation,and so on.the waterproof technology of Projected capacitive touchscreen, which can be operated with Works with water,dust,oil,
moisten and provides a high quality touch experience under harsh condition. (up to 10 touch points). Toponetech offers both standard and custom
industrial display sizes, Toponetech's 7 inch projected capacitive touch screens are form, fit or function replacements for 3M™ and Elo™ touch sensors.
Customizable:Top One Tech® offers a wide range of customization options to meet your requirements including screen dimensions, cover glass thickness, bonding and surface treatments such as anti-glare.
Specifications:
Mechanical Dimensions
Due to its highly durable and smooth surface,projected capacitive touch screen is suitable for industrial touchscreen display applications,Gaming,
Transprotation,and so on.the waterproof technology of Projected capacitive touchscreen, which can be operated with Works with water,dust,oil,
moisten and provides a high quality touch experience under harsh condition. (up to 10 touch points). Toponetech offers both standard and custom
industrial display sizes, Toponetech's 7 inch projected capacitive touch screens are form, fit or function replacements for 3M™ and Elo™ touch sensors.
Customizable:Top One Tech® offers a wide range of customization options to meet your requirements including screen dimensions, cover glass thickness, bonding and surface treatments such as anti-glare.
Specifications:
| Part Number(s) | PCAP (Worldwide) -TOT007UCA111 |
| Technology | PCAP (TopOneTech® Projected Capacitive) |
| Number of Touches | Multi Touch (10) |
| Input Methods | Finger |
| Gloved hand | |
| Passive stylus | |
| Dimensions | sizes from 7" to 55" |
| Active Area (mm) | 6.09" × 3.40"/ 154.60mm × 86.32mm |
| Touch Panel Dimensions | 6.81" × 4.55" ×0.08" /173.03mm × 115.50mm × 2.0mm |
| Light Transmittance | ≥ 90% |
| Haze | < 1% |
| Overall Thickness | 2.0mm |
| Cover Glass Thickness | 1.1mm |
| Surface Treatment | Anti-glare (optional) |
| Anti-fingerprint (optional) | |
| Anti-smudge (optional) | |
| Durability | Over 50 million touches in one location |
| Positional Accuracy | ± 1.5mm |
| Interface | USB (Standard), I2C (Optional) |
| Report Rate | ≥ 100Hz |
| Operating System | Windows XP |
| Windows 7 | |
| Windows 8 | |
| Windows 10 | |
| Linux | |
| Android | |
| Utilities | Multiple monitor |
| Touch zones | |
| Various touch modes | |
| Operating Temperature | -20° to 70°C (Non Condensing) |
| Humidity | RH <90% (Non-Condensing) |
| Safety Approvals | CE,FCC,ERP |
| Warranty | 1-year limited warranty |
| Note | Actual technical specifications are dependent on multiple design variables including touch IC and screen size. Values above are for reference only. |
Mechanical Dimensions
