Feature:
Output constant voltage
Universal AC input:100-130VAC
Power factor: up to 0.65
High efficiency :up to 84%
Protection:short circuit/over loading/over current/over temperature
Full protection aluminum housing
Easy installation
Cooling by free air convectiong
Compatible with forward phase,triac,MLV,ELV dimmers
Strong compatibility,flicker-free dimming
Suitable for LED lighting and moving sign applications and others
Compliance to worldwide safety regulations for lighting
| specifications | |||

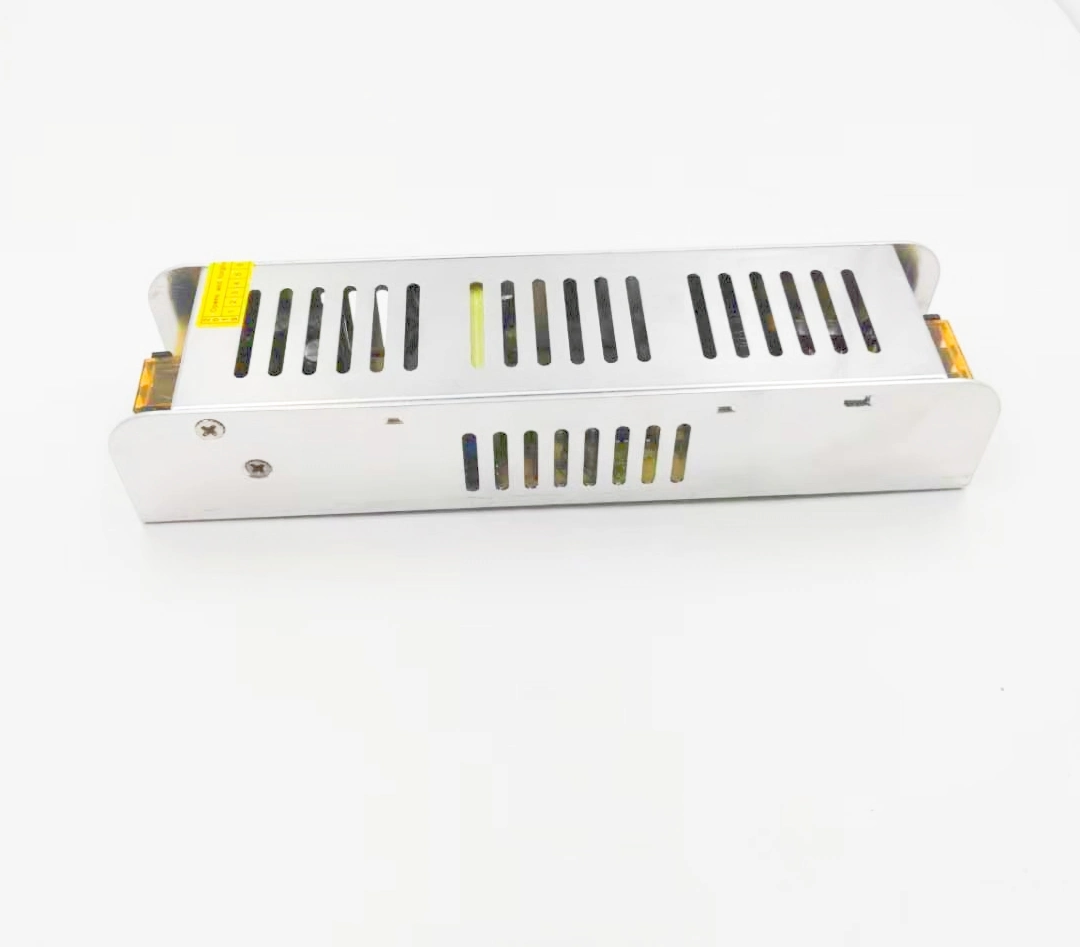

| 12V 100W LED Dimming Power Supply | |||
| Output | |||
| DC Voltage | 12V | ||
| Rated Current | 13.5A | ||
| Current Range | 0~13.5A | ||
| Rated Power | 100W | ||
| Ripple Wave | 200mVp-p(oscilloscope probe with a 0.1uF ceramic and a 10uF electrolytic capacitor) | ||
| Voltage Accuracy | ±3% | ||
| Line Regulation Rate | ±0.7% | ||
| Load Regulation Rate | ±1% | ||
| Start / Rise Time (Max) | 1000mS/40mS | ||
| Maintain Time | 10mS min | ||
| Input | |||
| Voltage Range | 180~240Vac | ||
| Frequency Range | 47~63HZ | ||
| Efficiency(max) | more then 84% | ||
| Surge Current(max) | Cold start current 60A/230V | ||
| Leakage Current(max) | 5mA | ||
| Protection | |||
| Overvoltage protection | greater than 17V less than 19V | ||
| Constant current mode, output voltage drop after overload | |||
| short circuit | Septum protection, Auto recovery after normal | ||
| Environment | |||
| Operating Temp/Hum | -30ºC~+55ºC /20~90%RH | ||
| Storage Temp/Hum | -40ºC~+85ºC/10~95%RH | ||
| Safety rules and electromagnetic compatibility | |||
| safety specification | Reference to UL60950-1, TUE EN60950-1 standard design | ||
| withstand voltage | I/P-O/P:0.5KVAC;I/P-FG:0.5KVAC;O/P-FG:500VDC | ||
| Insulation impedance | I/P-O/P,I/P-FG:100M Ohms/500VDC | ||
| EMI(RE,CE) | Reference to EN55002 Class B standard design | ||
| harmonic current | Reference to EN61000-3-2, Class A standard design | ||
| Electromagneti immunity(RS,CS) | Reference to IEC61000-4-6, IEC61000-4-3 standard design | ||
| others | |||
| Single weight | 279g | ||
| Size | 198*40*33mm | ||
| Package | 42 Pcs/box | ||
